HEADlab II — 功能强大的新一代数采系统

02. 五月 2022

The new generation of the HEADlab modular multi-channel data acquisition system takes the lead with a range of advanced features and is even better suited for demanding mobile applications than its well-known predecessor. The new models, with their clean and robust design, feature a double data rate protocol, high-speed CAN-FD support and synchronization capabilities of multiple, spatially distributed controllers via GPS and LAN (PTP). And optional stand-alone recording enables measurements without an external computer.

Robust, easy to configure and more powerful than ever before

HEADlab II systems consist of one or more controllers with different input, playback and power supply modules. They are easy to configure: Depending on the application, the user selects the appropriate module for the different sensor types and combines it with one controller. Both, modules and controller, are robust, fan- and noiseless and can be flexibly combined. An integrated locking mechanism allows the modules to be combined into robust units and easily separated again.

Here beats the heart: Controller labCTRL II.1 with new interface protocol HEADlink 2.0

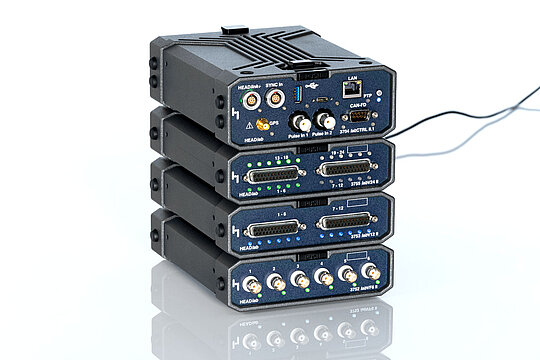

The heart of the HEADlab II system is the powerful controller labCTRL II.1 with the new interface protocol HEADlink 2.0 enabling very high channel numbers or higher sampling rates (8 to 204.8 kHz per channel) compared to its predecessor. labCTRL II.1 bundles and synchronizes the data, supplies the connected modules with power and establishes the connection to the PC. Connecting multiple controllers creates systems with up to 600 channels for large and complex projects. With additional accessories such as the Isofix mount for crash-proof installation in the vehicle, HEADlab II systems can be conveniently and safely attached or transported.

Fully compatible and extremely flexible

Whether for vibro-acoustic analyses regarding sound transmission of technical products, for aerospace applications or automotive measurements in vehicles and test benches: HEADlab II takes the lead in mobile sound and vibration measurement technology with its bundling of performance, a large number of channels and optional stand-alone recording. This modular system, which scores with robust technology in a small installation space, convinces even in difficult application scenarios and measurement situations with easy handling and high performance.

All HEADlab modules of Generation I and II are fully compatible with each other. HEADlab Generation I modules can be combined with a Generation II controller, and the new input modules can also be combined with a Generation I controller using the HEADlink 1.0 protocol (data rate as for HEADlab Generation I modules). In mixed operation, it is negotiated per HEADlink connection which protocol can be used. This guarantees full flexibility and maximum performance for every module.
