Structural Analysis with HEAD acoustics
ArtemiS SUITE Structural Analysis enables you to achieve your goals efficiently and effortlessly. The intuitive and intelligent software supports you in solving complex tasks - regardless of the application scenario.
HEAD acoustics offers structural analysis with intelligent software support for every user and largely independent of user experience. The new modules fit seamlessly into the proven tools of ArtemiS SUITE and are clearly structured and precisely coordinated. A sophisticated, clear user interface helps the user to focus on the essentials, even if the task is highly complex.
Every successful project begins with a plan
David Ewins' Secret Rule #1 is "Get familiar with the structure before conducting a full measurement!"
In modal analysis, the most important question is: Where is the reference point for a certain test object? If it is chosen incorrectly, the result will always be a poor curve fit. In the worst - but most likely - case, some modes will not be captured at all. Worse yet, the user will be unaware of this incomplete analysis, which limits its effectiveness for any optimization, since the foundation is not entirely accurate.

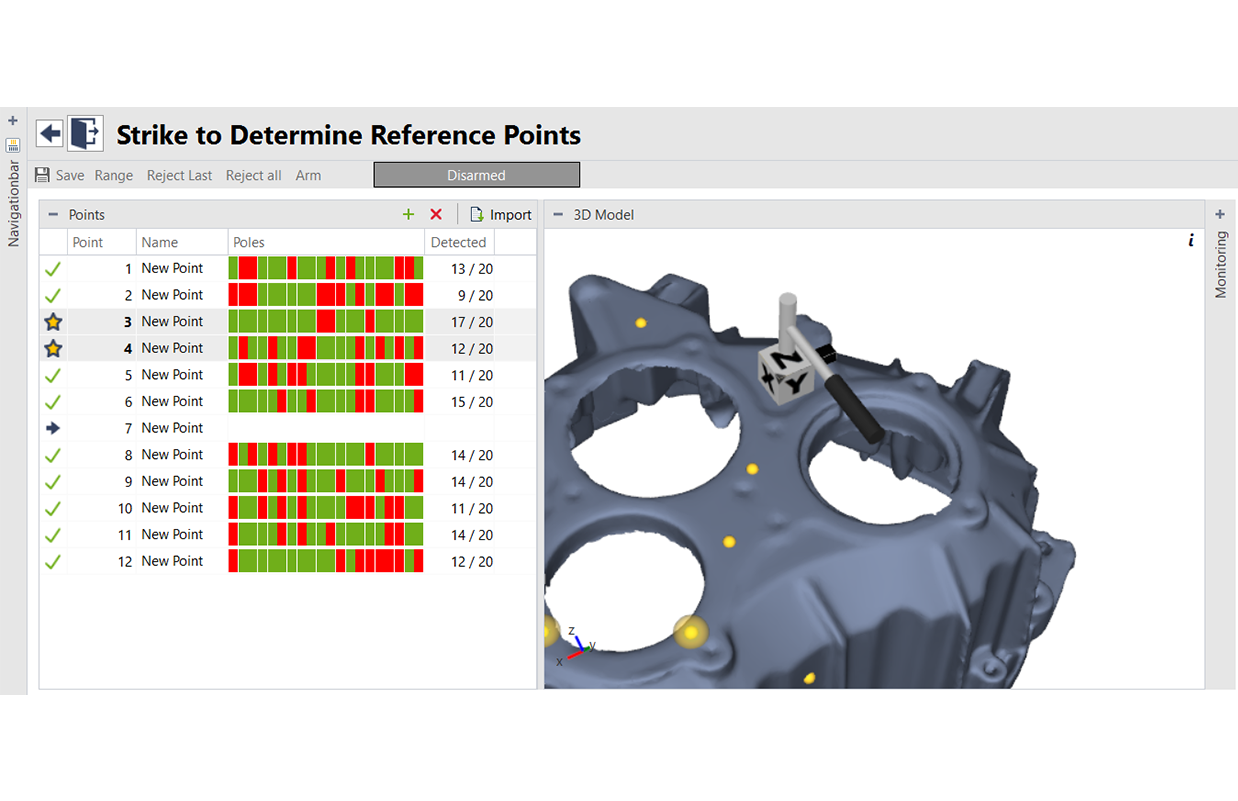

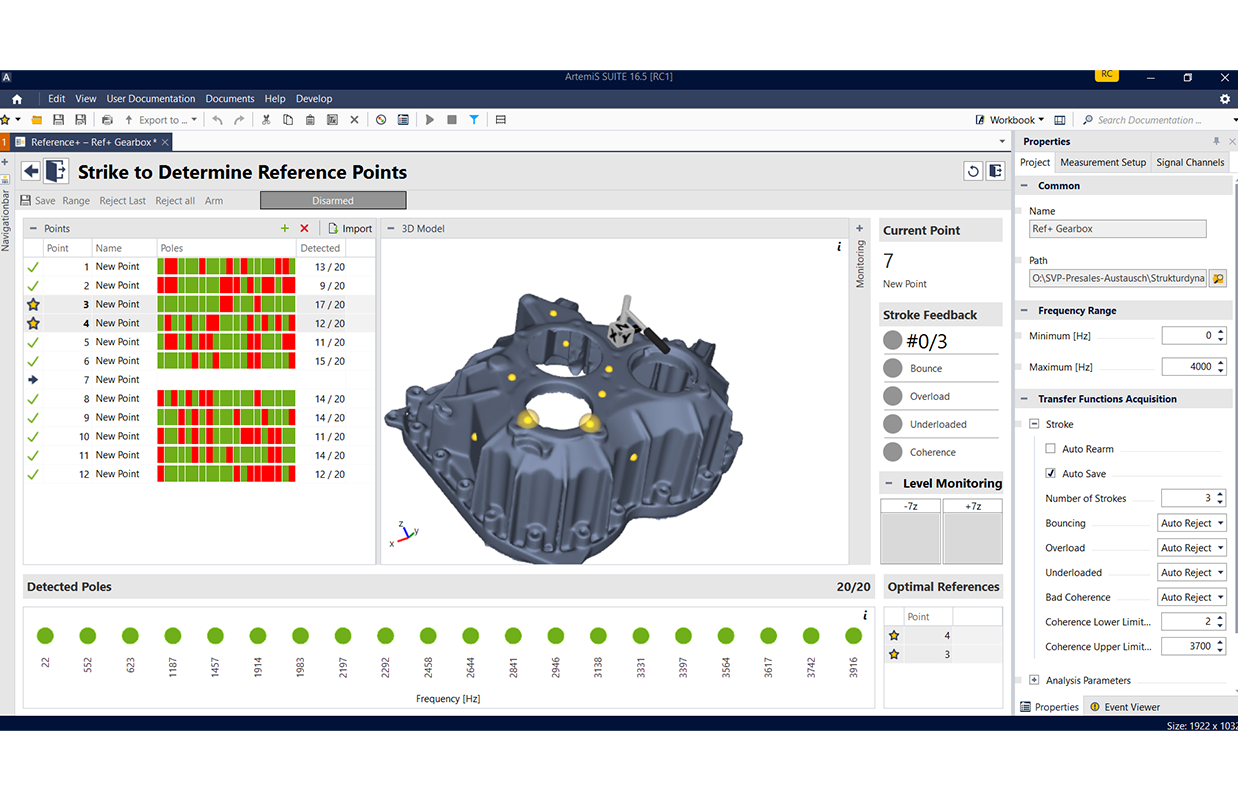

Reference+ from HEAD acoustics performs this essential task automatically and reliably, AI-enabled. All you need besides the software are a hammer and a sensor. Neither simulation results nor prior knowledge or experience with modal analysis are required.
Validate simulation data quickly and reliably
- Impressive 3D visualization and graphical MAC display
- Intuitive, interactive working method
- Powerful algorithm with direct FE results import (NASTRAN, Abaqus, ...)

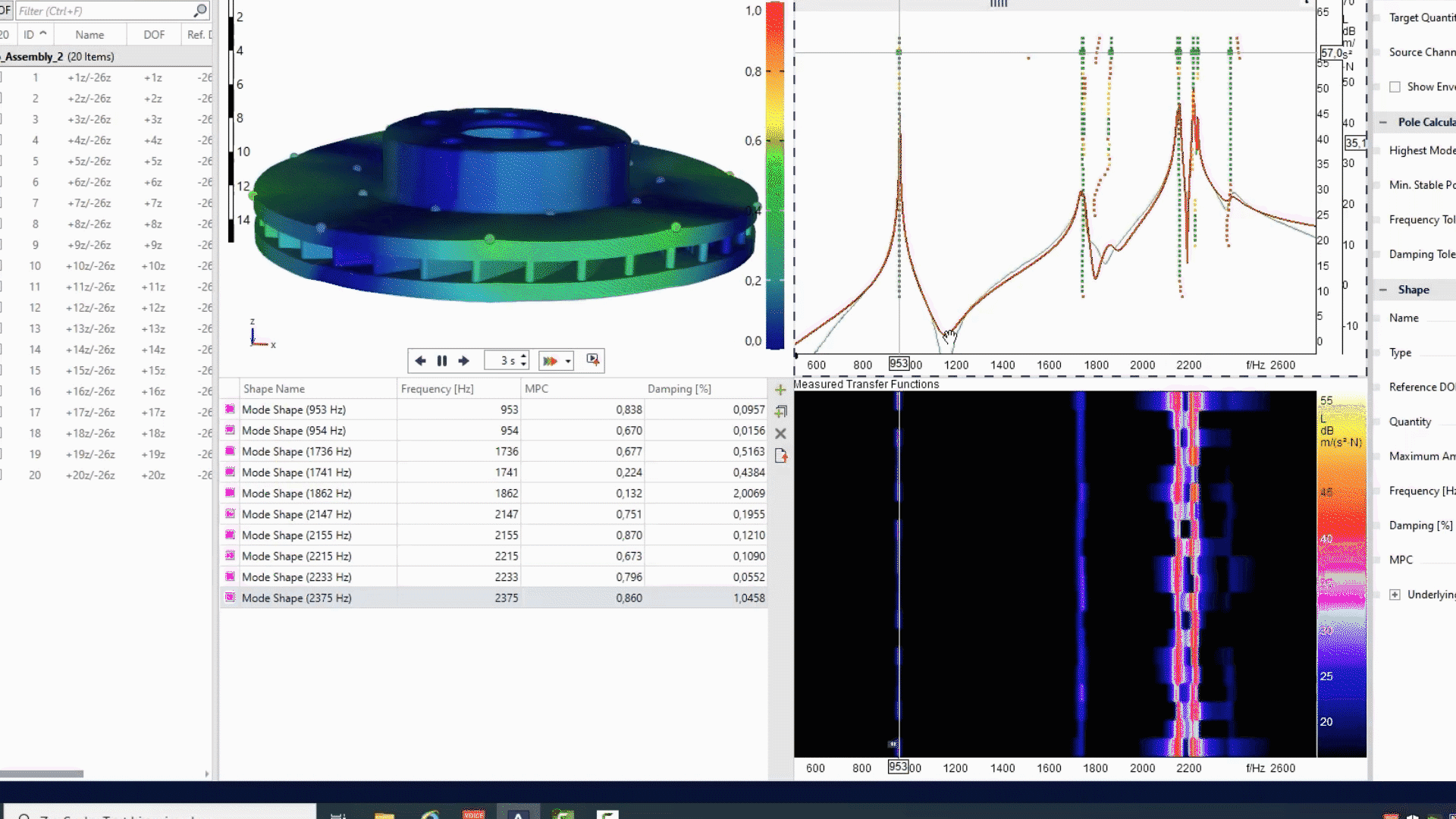

Animate and compare transfer functions; visualize measurements and simulation data in the form of 3D vibration shapes in the Shape Comparison Tool; analyze ODS or mode shapes: evaluate and compare experimental and numerical analysis results with incredible ease – and all in just one software environment!
Intuitive and interactive work
David Ewins' Secret Rule #2: "Make sure the data is perfect before the device under test leaves your lab, because you can't repair it!"
The measurement point library and the traffic-light-based feedback system help keep track of the data quality and analysis even during the measurement process, allowing you to work independently of other departments.
Structural analysis used to be a long, drawn-out, complex task – now, you can perform all jobs with ease.

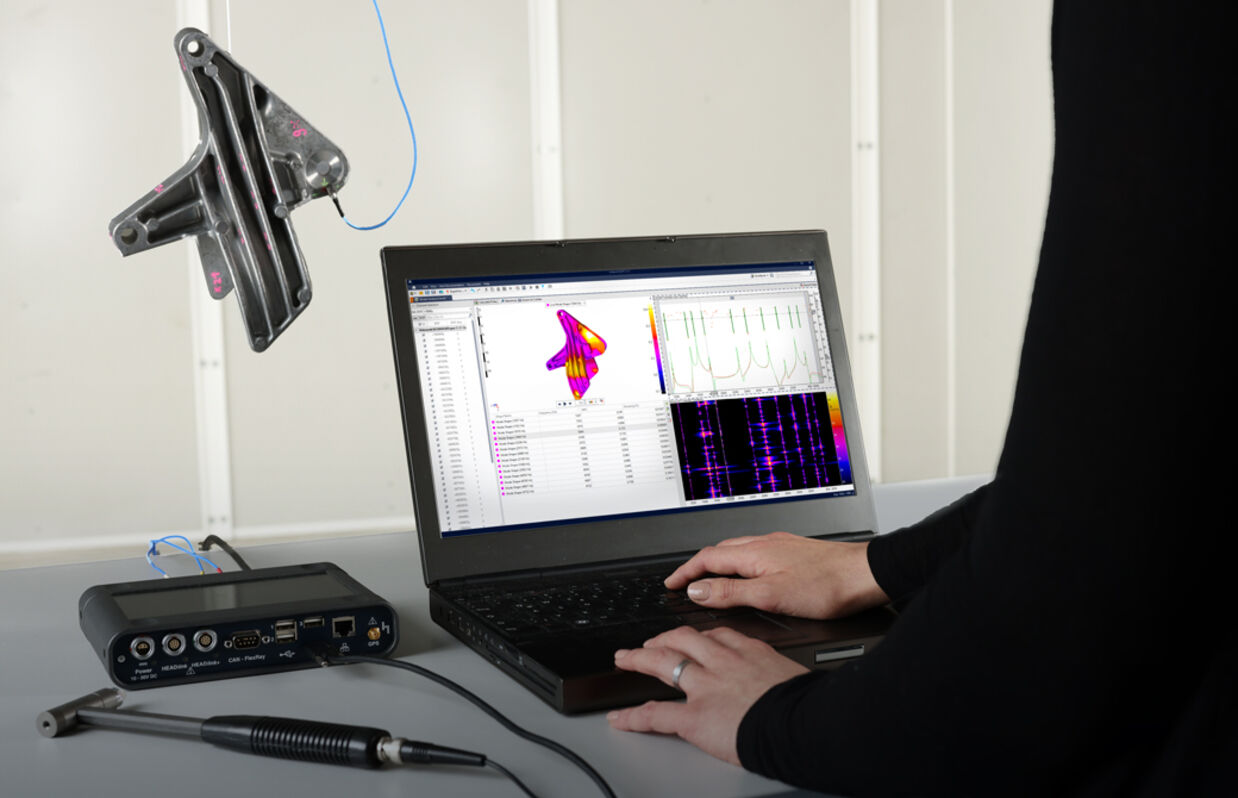

Comprehensive troubleshooting
Whether it’s background noise, resonance or structural problems - you will gain detailed insight into your system. You can use our central measurement point library at all stages of your project.
This HEAD acoustics software allows you to perform structural analysis tasks quickly and reliably, based on neural networks.
Easy shaker measurements with ArtemiS SUITE Recorder

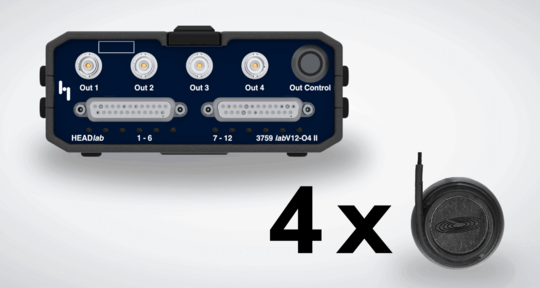

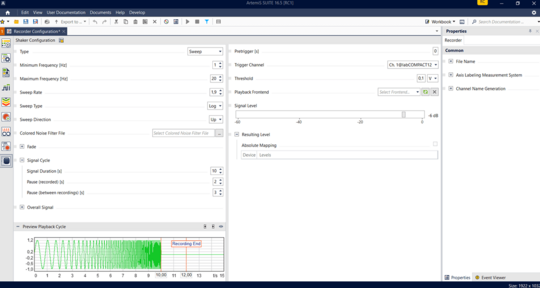

When more excitation energy is needed or reproducibility of excitation is critical, shakers can excite a structure. In ArtemiS SUITE recorder, it is easy to set up such a measurement in a dedicated section designed for fast shaker measurements. Ease of use is key, so you find all relevant configuration steps on one page. You can quickly create different signal types and measure different excitation scenarios. Get the most out of your investigations with our dedicated shaker hardware labV12-O4 II and easy-to-use inertial shakers from Qsources.
Powerful team
When you perform structural analysis with HEAD acoustics, you benefit from a powerful and perfectly matched team of solutions that allow you to intuitively understand the complex relationship between stimulus and structure. Having our tool walk you through the process from the start helps make each measurement count.
