AQuire V4 – 4-channel front end with network and USB connectivity for end-of-line applications
AQuire V4 is a 4-channel front end with network and USB connectivity designed for...

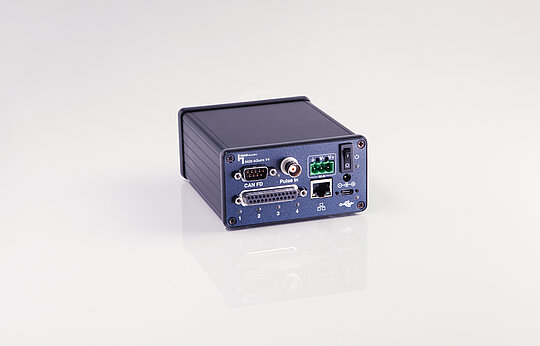

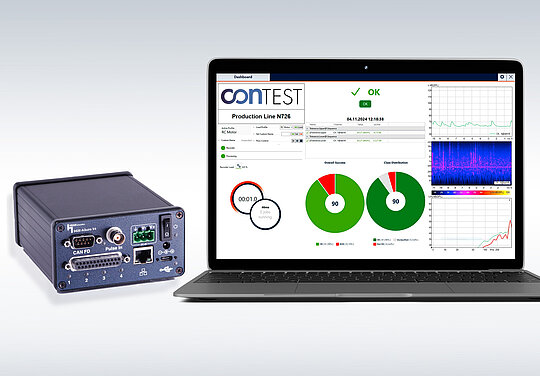

AQuire V4 is a 4-channel front end with network and USB connectivity designed for end-of-line applications. This compact and versatile device enables fast, accurate, and cost-effective vibroacoustic testing and is ideal for quality control. Combined with the conTEST software, AQuire V4 offers a straightforward solution for continuous testing of a wide range of products. AQuire V4 connects to a computer running conTEST via LAN or USB. It can also be used as a front end for data acquisition with ArtemiS SUITE.
AQuire V4 records vibroacoustic and other analog measurement parameters and automatically checks them for compliance with the product specifications. It can be used with up to four analog microphones, accelerometers or other analog sensors, a pulse source, and a CAN-FD bus.
AQuire V4 can be easily integrated into an existing infrastructure thanks to various power supply options.
AQuire V4 is a 4-channel front end with network and USB connectivity designed for end-of-line applications. This compact and versatile device enables fast, accurate, and cost-effective vibroacoustic testing and is ideal for quality control. Combined with the conTEST software, AQuire V4...
AQuire V4 is a 4-channel front end with network and USB connectivity designed for end-of-line applications. This compact and versatile device enables fast, accurate, and cost-effective vibroacoustic testing and is ideal for quality control. Combined with the conTEST software, AQuire V4 offers a straightforward solution for continuous testing of a wide range of products. AQuire V4 connects to a computer running conTEST via LAN or USB. It can also be used as a front end for data acquisition with ArtemiS SUITE.
AQuire V4 records vibroacoustic and other analog measurement parameters and automatically checks them for compliance with the product specifications. It can be used with up to four analog microphones, accelerometers or other analog sensors, a pulse source, and a CAN-FD bus.
AQuire V4 can be easily integrated into an existing infrastructure thanks to various power supply options.
Highlights
- Cost-effective end-of-line solution for automated continuous testing and quality control
- Flexible mounting options: can be used as a tabletop device or mounted in a test station
- Wide range of power supply options: USB-C, Power over Ethernet (PoE), AC adapter, three-pin connector
- Connection of up to four analog sensors as well as a pulse source, CAN FD bus, LAN, and USB
- Electrically isolated inputs for high signal quality
- Compatibility with conTEST and ArtemiS SUITE for comprehensive evaluation and analysis
Applications
- End-of-line tests for quality control in manufacturing
- Acoustic tests for products with limited channel requirements
- Automated long-term tests in industrial measuring stations
- Testing vibroacoustic properties for automotive applications

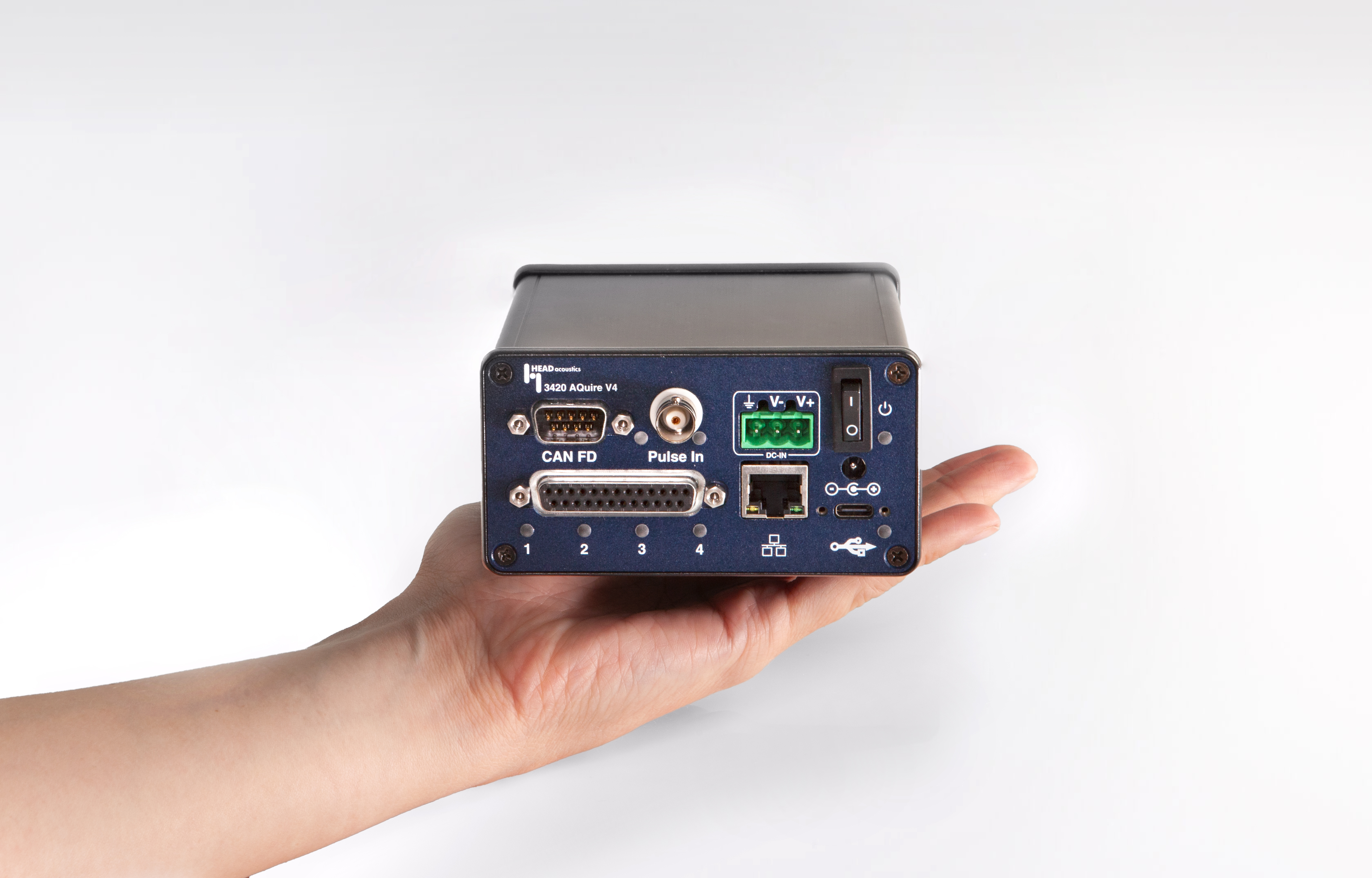

- AQuire V4 can be used as a desktop device, e.g. in the control room of a test stand
- AQuire V4 can be permanently mounted with the included DIN rail (DIN EN 60715 TH35) for continuous operation, e.g. in a measuring station
Do you have any question concerning your application or test setup? Please do not hesitate to write us at sales@head-acoustics.com.
Features
- Power supply: USB-C (USB 3.0), PoE, DC coaxial connection, three-pole terminal connection
- Max. sampling rate: 48 kHz
- Analog input: 4 channels, frequency range 0 Hz – 22 kHz, electrically isolated
- Sensor supply: switchable ±5V, ±12V, ±15V
- LAN interface: RJ45, IEEE 802.3u, 100 Mbit/s
- USB port: USB-C, USB 2.0 with 480 Mbit/s (USB 3.0 required for power supply)
- CAN FD interface: ISO 11898-2:2015 and ISO 15765-4, 5 Mbit/s
- Operating temperature range: -10 °C – +60 °C, 14 °F – +140 °F
- Dimensions: 106 x 133 x 58 mm
- Protection class: IP40 with three-pole plug
- Max. pulse frequency: 250 kHz
- Supply voltage
DC coaxial power connector: 12 V – 28 VDC
Three-pole terminal: 12 V – 28 VDC
Power over Ethernet: 37 V – 57 VDC
USB 3.0: 5 VDC - Power consumption: 7 W max. at full sensor supply and activated ICP supply
- Wide range of optional accessories such as cable adapters and cables
